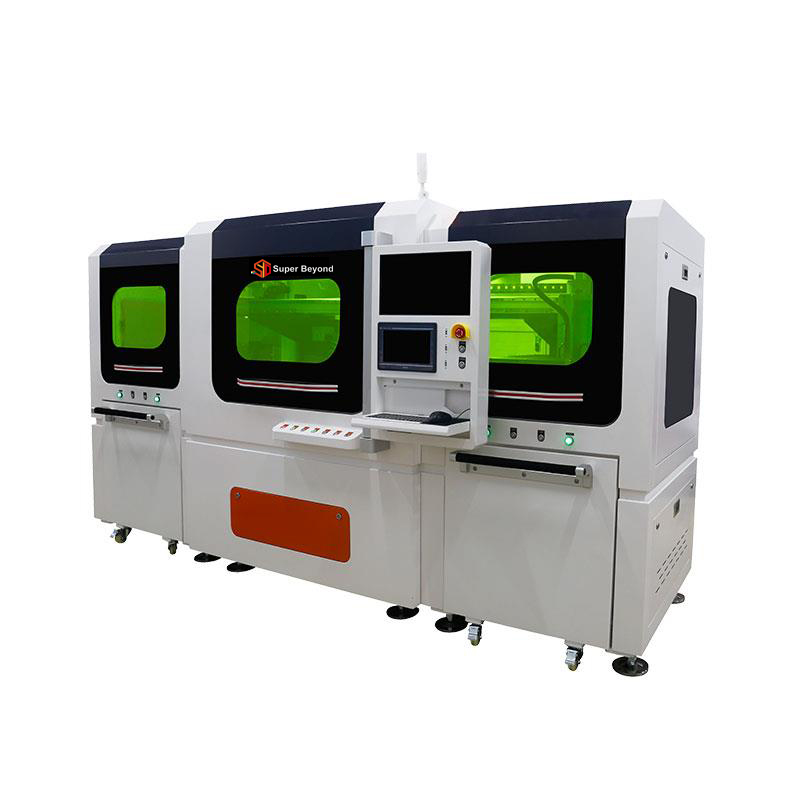

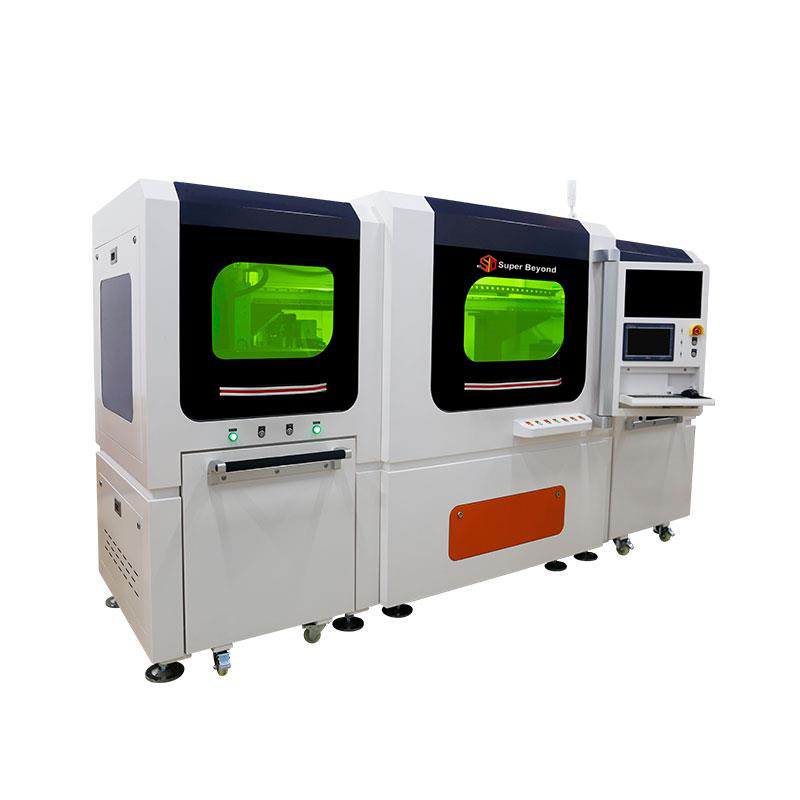

big size PCB laser marking machine

big size PCB laser marking machine

Application
PCB large format automatic laser code printer is mainly used in PCB, FPCB, SMT and other industries; Mainly used in PCB/FPCB surface automatic marking with two-dimensional code one-dimensional code, characters. (according to different format to choose the corresponding model), material can be white oil, green oil, black oil and other ink and copper, stainless steel, aluminum alloy surface automatic marking .The information of raw material procurement, production process and process, product batch, manufacturer, production date, product whereabouts and other information can be automatically generated two-dimensional code, and automatically marked on the PCB/FPCB surface by laser for traceability and management of products.

CHARACTERISTICS

Imported CO2 laser, fiber laser, green light, ultraviolet laser, stable performance;
With flip function, can mark the front side and back side continuously at one time
Adopt high strength square welding body, the machine runs stably;
Adopting imported galvanometer, high precision, fast marking speed and stable performance
Engrave code platform with automatic lifting function, convenient for height adjustment;
High precision servo screw movement platform, precise positioning

Badmark recognition

With Badmark recognition function, can automatically identify and marking “X” board, no carving;

Software operating

User-friendly operation interface, easy to learn, editing powerful; Compared with the ordinary printing method, no consumables, environmental protection, pollution, maintenance free;

Positioning function

With a manipulator directly connected to the front and rear processes, automatically grab the product from the production line above, encoder platform with automatic adsorption, and positioning function, can effectively PCB positioning, PCB platform will be closely adsorbed, to provide the qualified rate of code;

Model： SYD-CBLF-7070
Equipment size： L3600*W1850*H1850mm
Field lens marking area：175mm*175mm（Can be switched as required）
Marking speed： Linear marking speed reaches 7000mm/s
Accurate positioning：±0.05mm
Accurate repeat positioning：±0.02mm
Laser light source： Ultraviolet, green light,CO2, fiber
Visual system： Industrial CCD positioning and code reading system;
Minimum machining character height）：0.1mm-0.4mm (depending on laser type)
One-dimensional code type：Code 39,Code 25, Code 39,Code 128,EAN-13,
EAN-8, LSBN,etc.
Qr code type）：Data matrix,QR Code,micro QR Code,PDF417, Code 49,Code 16K；
(and other common qr codes;)
Applicable products：PCB hardboard white, green, blue, black and other ink; Copper; Stainless steel; Aluminum alloy (depending on laser type);
Applicable board PCB size：450*450-700*700mm; thickness: 0.5mm-5mm (can be customized according to requirements);
Character type：Support True Type fonts (JSF), SHX fonts, dot matrix fonts (DMF);
Average output power： 3w/5w/10W
Plate thickness：0.05mm-5mm
Coding ability：30 place≧1.5*1.5mm
Power supply：220V/50Hz/8KVA
Gas supply specifications：0.4-0.6MP
Environmental requirements）：（The temperature）15-30℃、（humidity）＜50％
Automatic load and unload system）： (Vacuum adsorption system;)
Automatic code reading function）： (Automatically read the qr code and save the data;)
Automatic customization functions）：Can be customized automatic loader and unloader;
Supported file format）：DXF,Excel,TXT and other common file formats;
Automatic positioning function：Support automatic photo taking, 2 o ‘clock, 3 o ‘clock and 4 o ‘clock positioning;
Machinable QR code size: Minimum QR code side is 1.5mm*1.5mm (depending on the laser type);
Intelligent production function：Intelligent production function: it can be customized to connect with ERP/MES and other systems to automatically obtain information such as work order number, product batch number, material code,product name and specification and automatically code;
