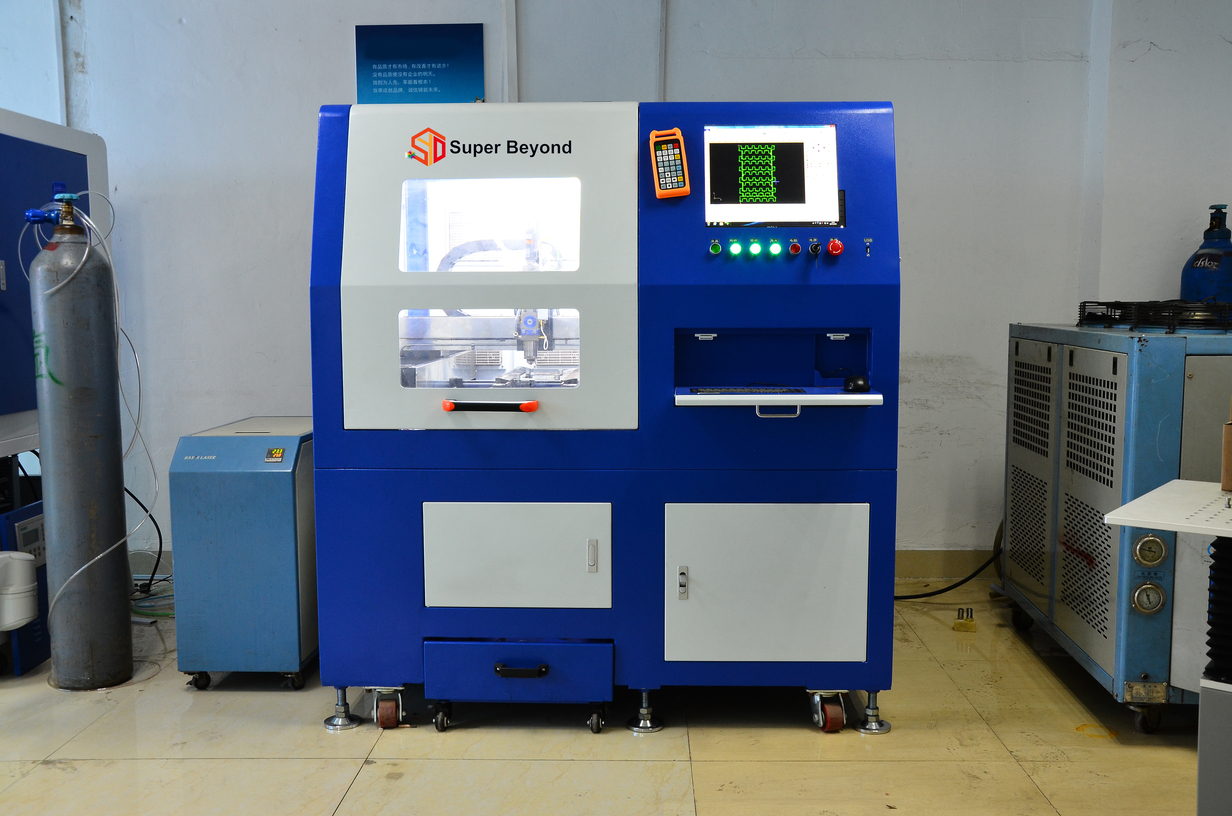

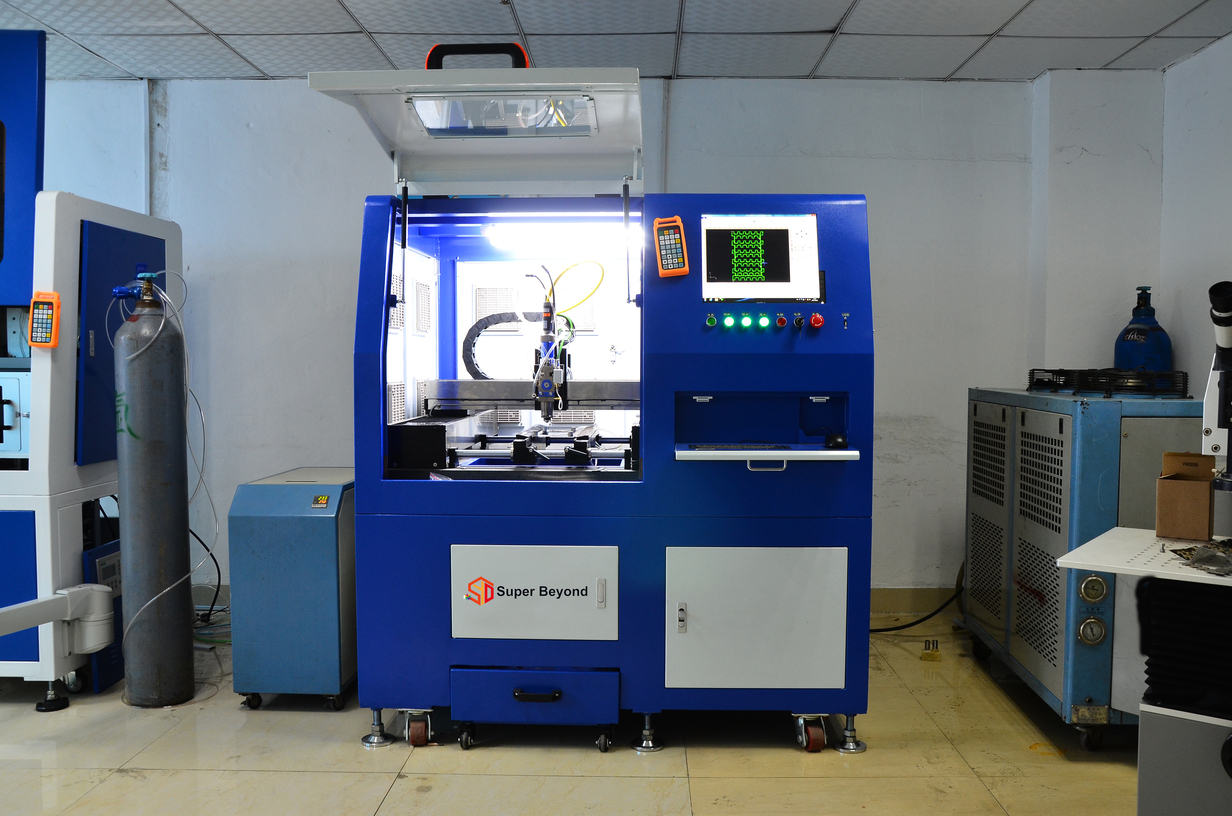

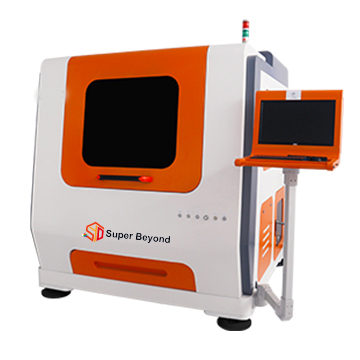

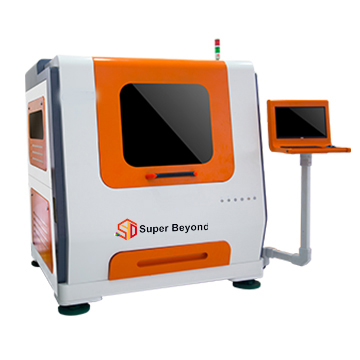

MPCB激光切割机/MPCB laser cutting machine
用途/Application
MPCB激光切割机适用于铝基板、陶瓷基板、铜基板、PCB、不锈钢、碳钢、铝铜、紫铜、镀锌板，硅钢材料上切割；应用于首饰、眼镜、电子元件、钟表、精密机械、工艺礼品等行业，集先进的光纤激光技术、磁悬浮技术、数控技术、精密机械技术于一体的高新技术设备。laser cutting machine is suitable for cutting aluminum substrate, ceramic substrate, copper substrate, FPC, stainless steel, carbon steel, aluminum copper, red copper, galvanized plate, silicon steel material; Applied to jewelry, glasses, electronic components, clocks and watches, precision machinery, arts and crafts, and other industries, integrated with advanced optical fiber laser technology, magnetic levitation technology, CNC technology, precision machinery technology in one high-tech equipment.
特征/CHARACTERISTICS
激光器/Laser
高效率进口激光器；
High efficiency imported lasers;
机架/rack
机架采用大理石结构，整体刚性好、强度高；
The frame is made of marble and with good overall rigidity and high strength.
横梁/The beam
横梁体采用轻量化设计，具备良好的加速性能；
The beam body is lightweight and with good acceleration performance;
主机/The host
设备主机整体刚性好、强度高；
The equipment main body with good rigidity and high strength;
高效/efficient
比传统机床提高20%的效率；
20% more efficient than traditional machine tools;
直线导轨/Linear guide
采用日本精密直线导轨，定位精度高，磨损少；
Adopting Japanese precision linear guide rails, with high accurate positioning and low wear rate;
运行稳定/Running stability
整机运行稳定、技术成熟、切割效率高；
The whole machine is with stable operation, mature technology and high cutting efficiency.
高精度/High precision
能长时间维持高精度，组装容易并具互换性；
It can maintain high precision for a long time, and it is easy to assemble and interchangeable;
精确/accurate
经过数控龙门铣床精密加工,确保运动精确；
Precision machining by CNC gantry milling machine to ensure accurate movement;
用途/USAGE
激光切割属于非接触加工，切割精细，适用于手机触摸屏，手机PET保护膜、PP片、PCB服装、皮革、布制玩具、电脑绣花裁剪、电子电器、模型、工艺品、广告装潢、包装印刷、纸质品等行业。
Laser cutting is a non-contact high precision cutting processing. Suitable for PCB hard board, sub-board,soft-hard board cutting.Also applied to wood, bamboo,jade,marble, organic glass,crystal,plastic,garments,paper,leather,rubber,ceramic,glass,advertisement,arts and crafts etc……
特征/CHARACTERISTICS
可在全面质量管理体系的工厂环境下进行生产作业，稳定性，精准度和速度三大指标均可体现世界一流设备的水准；
Production can be operated in the factory environment under the total quality management system, stablity,accuracy and speed of the three indexes can reflect the world first-class equipment level.
不论从软件设计，机械构造，电气性能到配件选材，始终强调为加工现场服务的宗旨；
No matter from the software design,mechanical structure, electrical properties to the accessories material, always emphasized the aim of processing field services.
面向贴补绣花等大批量加工行业用户，加工效率提高一倍，切割效果均匀一致，节约成本，提高产量；
To supplement the embroidery and other large processing industry users,double machining efficiency,cutting effect is uniform,save costs and increase production;
可支持图形格式BMP、GIF、FPGE、PCX、TIFF、PLT、CDR、DMG、DXF;
Can support graphical format BMP,GIF,FPGE, PCX ,TIFF, PLT, CDR, DMG, DXF.
可与卷对卷或片对片进行自动上下料；
Automatically running by RTR and PTP.
型号/ Model：CY-MCB-8080
切割范围/Cutting range：800*800
激光功率/Laser power：800W/1000W
最大空行速度/Maximum idle speed：60m/分钟（minutes)
最大切割速度/Cutting speed：20m/分钟（minutes)
定位精度/positioning accuracy：±0.02mm
重复定位精度/Repeatability：±0.01mm
最小线宽/Minimum line width：0.1mm
工作环境/working environment：0-45℃≤80%，无凝结（No condensation）
最大加速度/Maximum acceleration：2-5g
X轴快速移动速度/X axis fast moving speed：60m/min
X轴有效行程/X-axis effective stroke：800mm
X轴定位精度/X-axis positioning accuracy：±0.01mm
X轴重复精度/X-axis repeatability：±0.004mm
Y轴快速移动速度/Y axis fast moving speed：60m/min
Y轴有效行程/Y-axis effective stroke：800mm
Y轴定位精度/Y-axis positioning accuracy：±0.01mm
Y轴重复精度/Y-axis repeatability：±0.004mm
Z轴行程/Z-axis travel：100mm
