Super Beyond laser standard water-cooled handheld fiber laser welding machine for sale. Easy to Learn and provide High-Speed, High-Quality Welding Results.
Welcome enquiry!
Hotline: 86-152 2025 2616
Email: laser@super-beyond.com

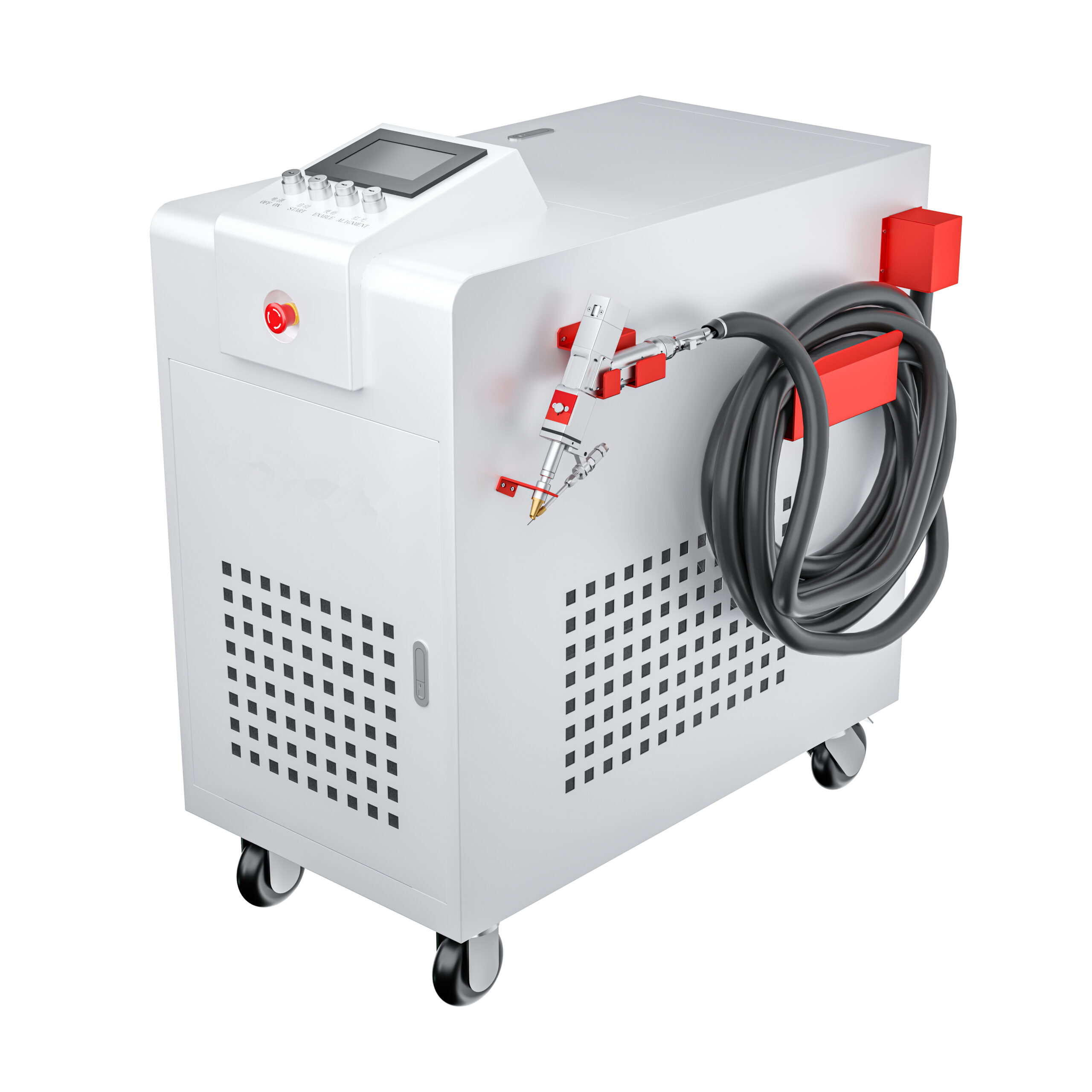

This handheld welding machine comes into existing with the latest generation of fiber laser, automatic wire feeder and newly developed wobble welding head, which makes it completely unique to fill the gap of handheld laser welding market.
It has the advantages of high electric-optical conversion rate, good beam quality, high reliability and maintenance-free operation. Welding mode can choose single swing or double swing welding technology, the focal length is adjustable, laser output is consistent, to ensure that the material processing industry welding products one after another. The integrated structure design is suitable for all kinds of frame structure parts, with the advantages of simple operation, beautiful weld, fast welding speed and no consumables.
This handheld laser welding machine is suitable for welding of gold, silver, titanium, nickel, tin, copper, aluminum and other metal and its alloy material, can achieve the same precision welding between metal and dissimilar metals, has been widely used in aerospace equipment, shipbuilding, instrumentation, mechanical and electrical products, automotive and other industries.
|
Laser Power |
1000W/ 1500W/ 2000W/ 3000W |
|
Laser wavelength |
1070nm |
|
Fiber Length |
Standard configuration: 10M, maximum support: 15m |
|
Operation Mode |
Continuous / modulation |
|
Welding machine speed range |
0-120 mm/s |
|
Cooling water machine |
Industrial thermostatic water tank |
|
Ambient Temperature |
15~35 ℃ |
|
Ambient Humidity |
< 70% no condensation |
|
Welding thickness |
0.5-3mm |
|
Gap requirements |
≤0.5mm |
|
Working Voltage |
AC220V |
|
Size |
1100mm x 570mm x 1180mm |
|
Weight |
220kg |
