Laser Cleaning Machine Factory price for selling. Faster Cleaning Speed. vailable For Various Metal. Chat! 200w-2000w laser power optional, wider application range. Customized Laser Systems.
Customized Design.
Professional R&D and After Service Team.
Hotline(WhatsApp): 86-152 2025 2616
Email: laser@super-beyond.com

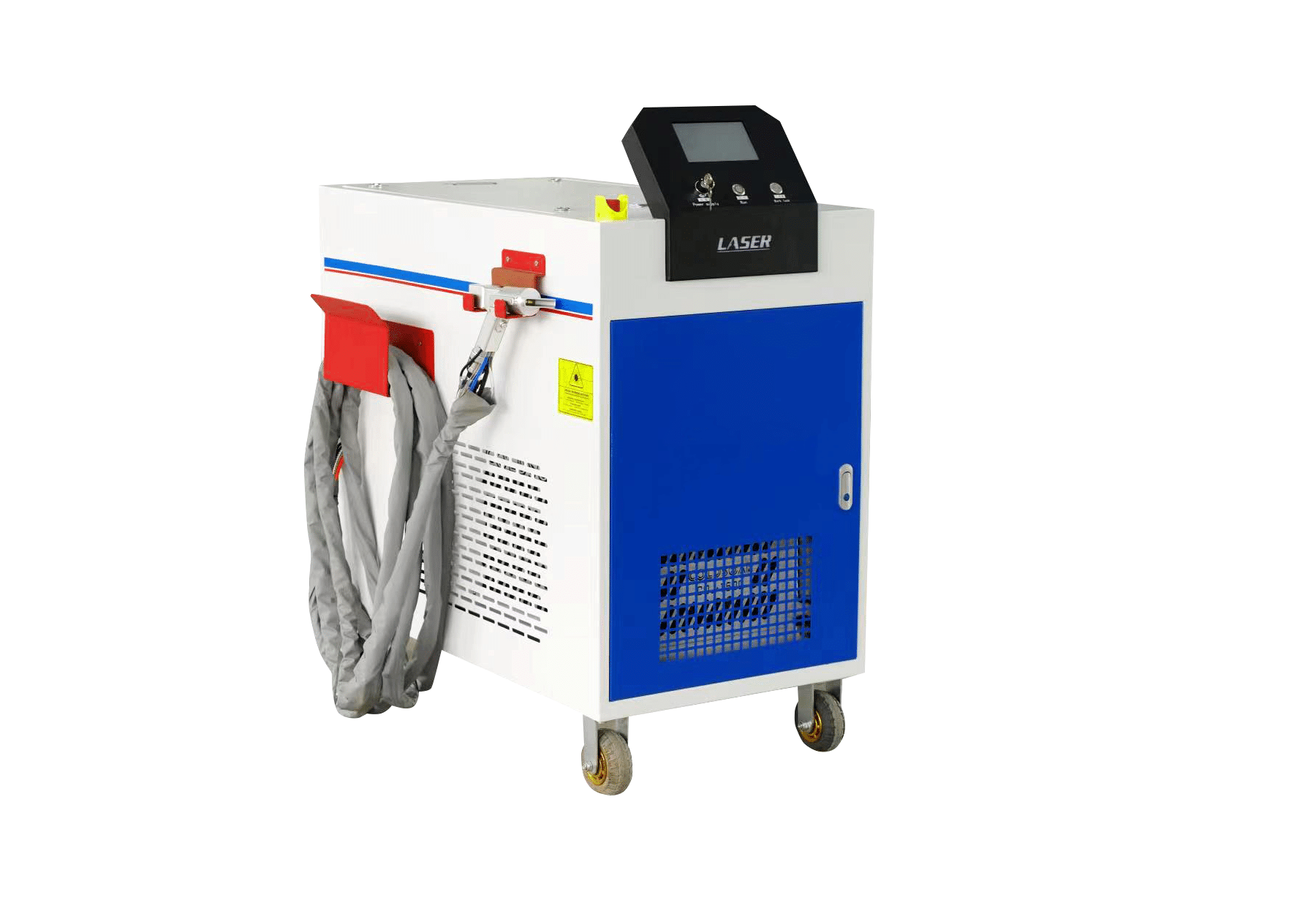

Handheld Laser Welding and Cleaning Systems are Compact, Easy to Learn and provide High-Speed, High-Quality Results.The Laser Cleaning Machine can remove resin, oil, stain, dirt, rust, coating, plating, paint on the surface of objects, and can protect the surface of brittle materials. The energy density is concentrated, and highly reflective materials can also be easily applied. 20W-2000W laser power is optional to meet more needs.Demystifying Made in China.Laser intelligent manufacturing is being fully popularized in China. Make products made in China sell well all over the world.It’s time to upgrade your production equipment, laser processing equipment is more efficient, environmentally friendly, safe and worry-free.
Application Range:
Metal surface rust removal; surface paint and paint removal treatment; surface oil, stains, and dirt cleaning; surface coating and coating removal; welding surface/spray surface pretreatment; stone statue surface dust and attachment removal; rubber mold residue cleaning. Widely used in iron and steel metallurgy, non-ferrous metals, automobiles and parts, aerospace, military electronics, precision instruments, machinery manufacturing, molds, hardware tools, integrated circuits, sheet metal, advertising, craft gifts and other industries.
|
Model |
SYD-200I-LC |
SYD-500I-LC |
SYD-1000I-LC |
SYD-HW2000 |
|
Laser Power |
200W |
500W |
1000W |
2000W |
|
Cooling Way |
Water cooling |
|||
|
Laser Wavelength |
1064 nm |
|||
|
Power Supply |
AC 220-250V / 50 Hz |
AC 380V / 50 Hz |
||
|
Maximum KVA |
2200W |
5100W |
7500W |
14000W |
|
Fiber Length |
12-15m |
12-15m |
12-15m |
12-15m |
|
Dimension |
1400X860X1600 mm |
2400X860X1600mm+ |
||
|
|
555X525X1080mm (external chiller size) |
|||
|
Focal length |
210mm |
|||
|
Focal depth |
5mm |
8mm |
||
|
Gross Weight |
250kg |
310kg |
360kg |
Total 480kg |
|
Handheld Laser Head Weight |
1.5kg3 kg |
|||
|
Working Temperature |
5-40°C |
|||
|
Pulse width |
20-50k ns |
|||
|
Scan Width |
10mm-80mm (customizable additional price) Don’t exceed 100m 120mm |
|||
|
Laser frequency |
20-50k HZ |
|||
|
Laser source type |
Fiber laser source |
|||
|
Options |
Handheld/Automation/Robotic system |
|||
