Application
PCB small and medium format automatic laser coding machine is mainly used in PCB, FPCB, SMT and other industries; Mainly used in PCB/FPCB surface automatic marking with two-dimensional code one-dimensional code, characters. (according to different format to choose the corresponding model), material can be white oil, green oil, black oil and other ink and copper, stainless steel, aluminum alloy surface automatic marking. The information of raw material procurement, production process and process, product batch, manufacturer, production date, product whereabouts and other information can be automatically generated two-dimensional code, and automatically marked on the PCB/FPCB surface by laser for traceability and management of products.
CHARACTERISTICS
Laser source
Imported CO2 laser, fiber laser, green light, ultraviolet laser, stable performance;
Automatic version
With flip function, can mark the front side and back side continuously at one time.
The fuselage
Adopt high strength square welding body, the machine runs stably;
The galvanometer
Adopting imported galvanometer, high precision, fast marking speed and stable performance;
Automatic lifting
Engrave code platform with automatic lifting function, convenient for height adjustment;
Servo screw
High precision servo screw movement platform, precise positioning;
Badmark recognition
With Badmark recognition function, can automatically identify and marking “X” board, no carving;
Software operating
User-friendly operation interface, easy to learn, editing powerful; Compared with the ordinary printing method, no consumables, environmental protection, pollution, maintenance free;
Positioning function
With a manipulator directly connected to the front and rear processes, automatically grab the product from the production line above, encoder platform with automatic adsorption, and positioning function, can effectively PCB positioning, PCB platform will be closely adsorbed, to provide the qualified rate of code;

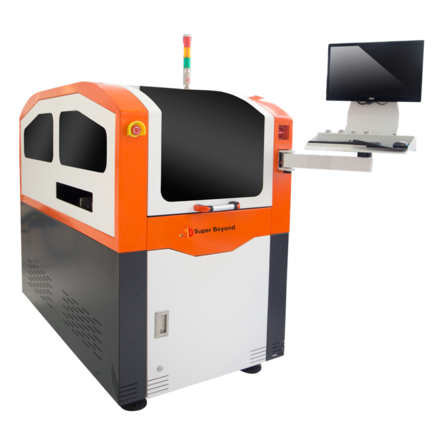

Type：SYD-CBSF-4545
Equipment size： L1990*W1770*H1850mm
Field lens marking area：175mm*175mm（Can be switched as required）
Marking speed： Linear marking speed reaches 7000mm/s
Accurate positioning：±0.05mm
Accurate repeat positioning：±0.02mm
Laser light source： Ultraviolet, green light,CO2, fiber
Visual system：Industrial CCD positioning and code reading system;
Minimum machining character height）：0.1mm-0.4mm；(depending on laser type)
One-dimensional code type：Code 39,Code 25, Code 39,Code 128,EAN-13,
EAN-8, LSBN,etc.
Qr code type：Data matrix,QR Code,micro QR Code,PDF417,
Code 49,Code 16K (and other common qr codes;)
Applicable products：PCB hardboard white, green, blue, black and other ink; Copper; Stainless steel; Aluminum alloy (depending on laser type;
Applicable board PCB size：less than 50*50-450*450; The thickness of 0.5 mm to 5 mm(can be customized);
Character type： Character Types：Support True Type fonts (JSF), SHX fonts, dot matrix fonts (DMF);
Average output power： 3w/5w/10W
Plate thickness：0.05mm-5mm
Coding ability：30 place≧1.5*1.5mm
Power supply：220V/50Hz/8KVA
Gas supply specifications：0.4-0.6MP
Environmental requirements： The temperature 15-30℃、humidity＜50％
Automatic load and unload system： Vacuum adsorption system;
Automatic code reading function：Automatically read the qr code and save the data;
Automatic customization functions：Can be customized automatic loader and unloader;
Supported file format：DXF,Excel,TXT and other common file formats;
Automatic positioning function: Support automatic photo taking, 2 o ‘clock, 3 o ‘clock and 4 o ‘clock positioning;
Machinable QR code size：Minimum QR code side is 1.5mm*1.5mm (depending on the laser type);
Intelligent production function：Intelligent production function: it can be customized to connect with ERP/MES and other systems to automatically obtain information such as work order number, product batch number, material code,product name and specification and automatically code;
Automatic FPC laser marking machine with dual heads
Automatic FPC code laser printer with dual head is mainly used in PCB, FPCB, SMT and other industries; Mainly used in PCB/FPCB surface automatic marking two-dimensional code (according to different format to choose the corresponding model). It can mark different FPC material including white oil, green oil, black oil and other ink and copper, stainless steel, aluminum alloy surface. Automatic marking two-dimensional code, one-dimensional code, characters, the information of raw material procurement, production process, product batch, manufacturer, production date, product whereabouts and other information, for traceability and management of products.
