Laser cutting uses a high-power density laser beam to quickly heat the material to vaporization temperature and evaporate to form a hole, move the beam to form a slit, so that realize the materials cutting.

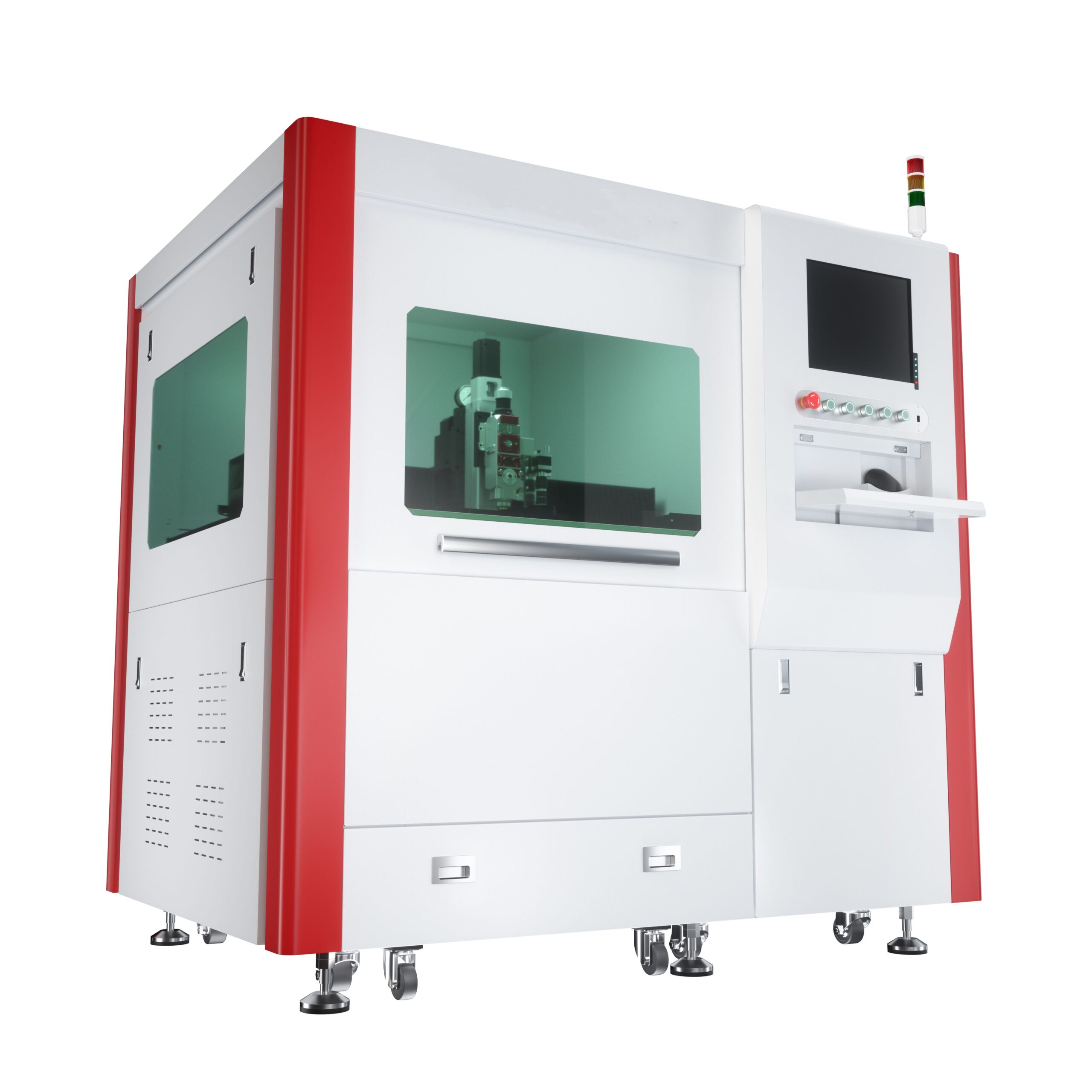

Based on this, Super Beyond small area high precision cutting machine also achieves high precision cutting, no tool wear, low heat impact, fast speed, automatic positioning, automatic correction and other functions.
Contact information:
Allison Yang
Email: laser@super-beyond.com
Tel: 86-152 2025 2616
Main features
Stable, mature technology, high cutting efficiency, small footprint, flexible application with full-time cutting, high utilization of the materials, strong expandability, and very flexible
Precision linear guide, high precision positioning, less wear; can keep high precision for a long time, easy and interchangeable
The laser cutting head is equipped with a sensitive bus-type capacitor, which can be adjusted to the ideal focal length to ensure the cutting efficiency and cutting effect
Realize the precise cutting and nearly without error and the cutting surface is smooth and flat

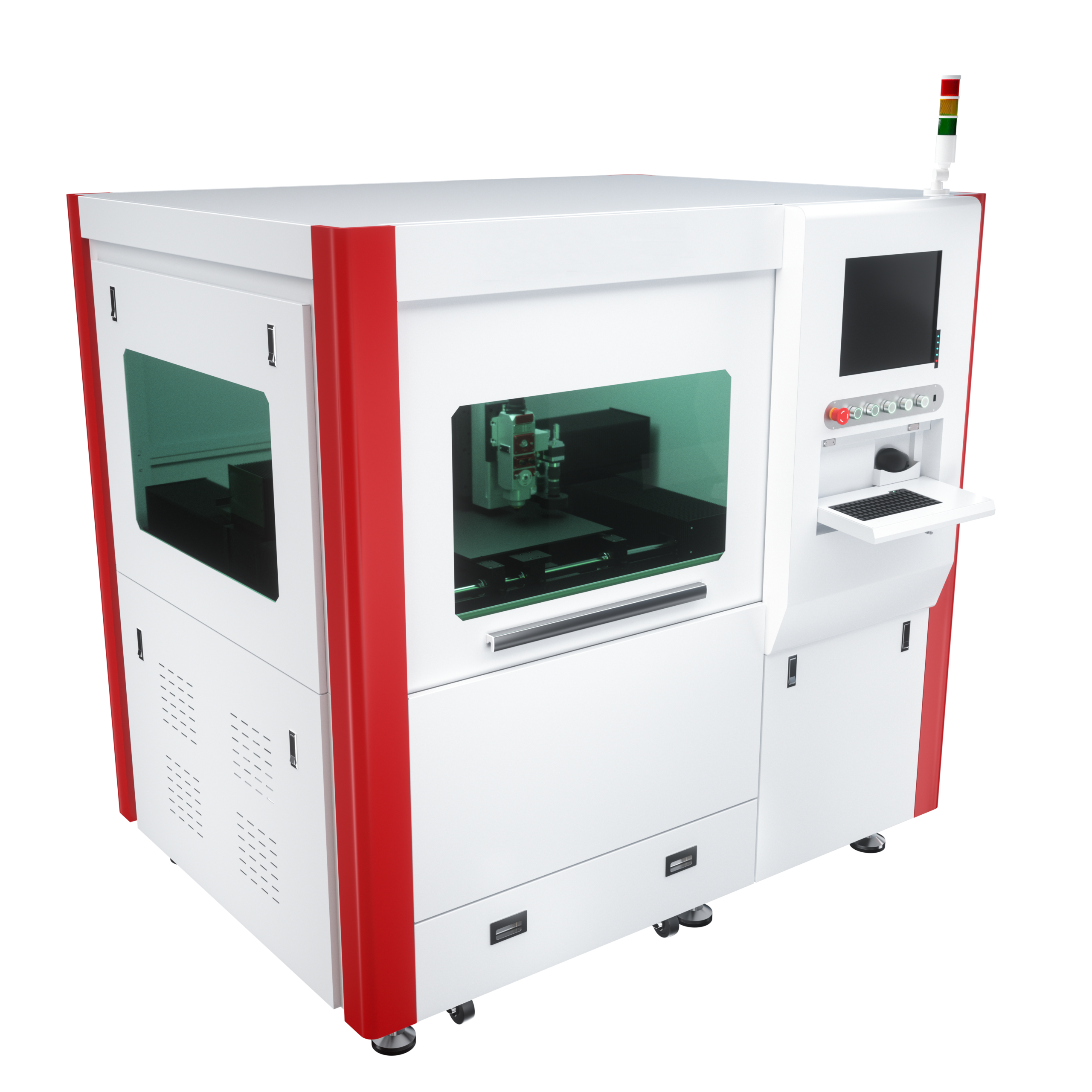

The small size precision fiber laser cutting machine adopts RAYCUS or IPG laser source which has international advanced laser technology, laser cutting flexibility is good, no need to open mold, greatly saving new product development time, cutting speed, high precision.
|
Optical performance parameter |
|
|
Laser source wavelength |
SYD-C6 |
|
Output power rate of the Laser source |
1070nm |
|
Effective cutting area |
600mm*600mm |
|
Cutting thickness (depend on Laser source power) |
Carbon ≤8mm; Stainless Steel ≤4mm; Aluminum Alloy ≤2mm; Copper ≤2mm; |
|
Positioning accuracy |
≤±0.03mm |
|
Repeated position accuracy |
≤±0.02mm |
|
Max speed of X-axis |
≤20m/min |
|
Max speed of Y-axis |
≤20m/min |
|
Max speed of Z-axis |
≤17m/min |
|
Synthesis speed |
≤20m/min |
|
Max accelerated speed |
0.3G |
|
Bearing weight |
300KG |
|
Electric demand |
AC220V±5%50Hz |
|
Total power consumption |
6KW-25KW |
|
Dimension |
1880*1450*2100(mm) |
|
Machine weight |
About 1200KG |
|
Support Graphical format |
DXF |
